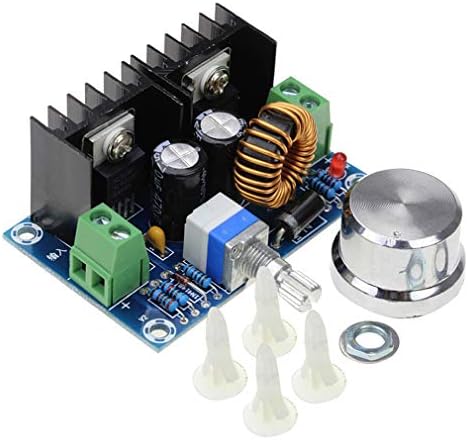

HiLetgo 2pcs XL4016 DC-DC 4-40V to 1.25-36V Step Down Buck Converter Power Supply Module XL4016E1 PWM Adjustable Step Down Board 8A 200W

Product Description

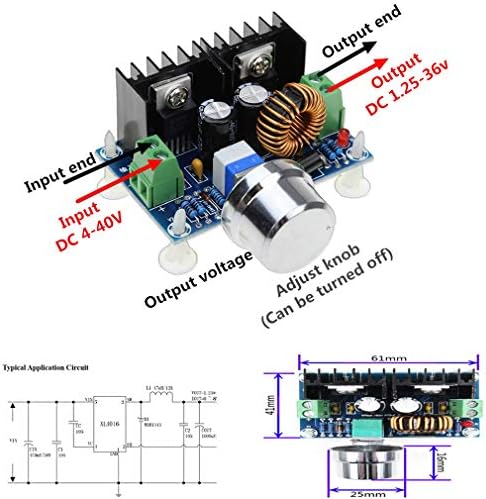

HiLetgo 2pcs XL4016 DC-DC Buck Step-Down Power Module 4V-40V to 1.25V-36V 8A 200W Specification: Voltage regulating mode: PWM modulation Input voltage: DC4-40V Output voltage: DC1.25-36V Max output current: 8A (more than 5A for long time use,need Fan if over 5A) Max power: 200W Conversion efficiency: 94% Switching frequency: 180KHZ Dimensions: 61*41*27mm Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection When reach maximum output current 8A, need to add fan. Long term work recommended about 5A Panel Mounting: 1. Drill holes in the Panel 7mm 2. Extended potentiometer handle 3. Lock screw sleeve upper knob Package Included: 2 * XL4016 DC-DC Buck Step-Down Power Module 4V-40V to 1.25V-36V 8A 200W
